Literature Interpretation | Nature | OptoXRs: Light-controlled tools for cellular signaling and precise regulation mammalian behavior
Release time：2025-09-02 15:20:02

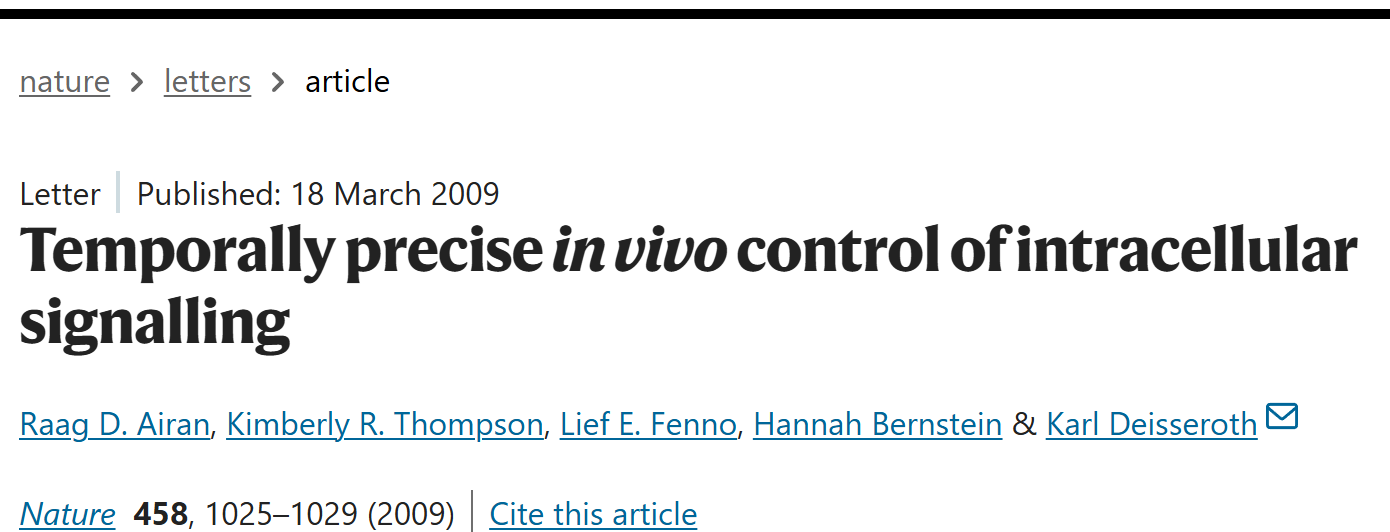

On March 18, 2009, Professor Karl Deisseroth, the “father of optogenetics” from Stanford University, and his team published an article in Nature titled “Temporally precise in vivo control of intracellular signalling.” In this study, the researchers developed a class of genetically encoded optical tools (optoXRs). These tools, designed based on the conserved structure–function relationship of G protein-coupled receptors (GPCRs), enable precise spatiotemporal control of intracellular signaling pathways using light.
Among them, two optoXRs (opto-α₁AR and opto-β₂AR) selectively activated different target signaling pathways and exerted opposite effects on neuronal firing in the nucleus accumbens. Furthermore, by applying precise optical stimulation to nucleus accumbens neurons expressing optoXRs, the researchers could directly drive conditioned place preference behavior in freely moving mice. This tool thus provides a new method with both specificity and temporal precision for investigating the causal role of biochemical signals (e.g., changes in intracellular cAMP, IP₃, Ca²⁺, and related signaling cascades) in mammalian behavior.
To engineer the constructs, intracellular loops of rhodopsin (a light-sensitive protein) were replaced with sequences from adrenergic receptors. Specifically, five residues from the Gq-coupled human α₁-adrenergic receptor (α₁AR; NCBI: NP_000671) and the Gs-coupled hamster β₂-adrenergic receptor (β₂AR; NCBI: CAA27430) were fused with the Gt-coupled bovine rhodopsin (NCBI: P02699) (Fig. 1a–b). Genes encoding these chimeric proteins (opto-α₁AR and opto-β₂AR) were synthesized and fused with fluorescent proteins.
To validate functional expression, calcium imaging experiments were performed in HEK cells. In HEK cells transfected with opto-α₁AR alone, or co-transfected with opto-β₂AR and the cAMP-gated Ca²⁺ channel CNGA2-C460W/E583M10, 60 seconds of green light stimulation (504 ± 6 nm, 77 mW/mm²) induced robust downstream calcium signals via optoXRs, whereas control groups showed no such response (Fig. 1c). To assess signaling specificity, HEK cells expressing optoXRs were stimulated with green light for 60 seconds, followed by immunoassays to measure cGMP, cAMP, and IP1 (a degradation product of IP₃). Results showed that opto-β₂AR activation significantly increased intracellular cAMP without recruiting IP₃, whereas opto-α₁AR activation strongly upregulated the IP₃ signaling pathway.

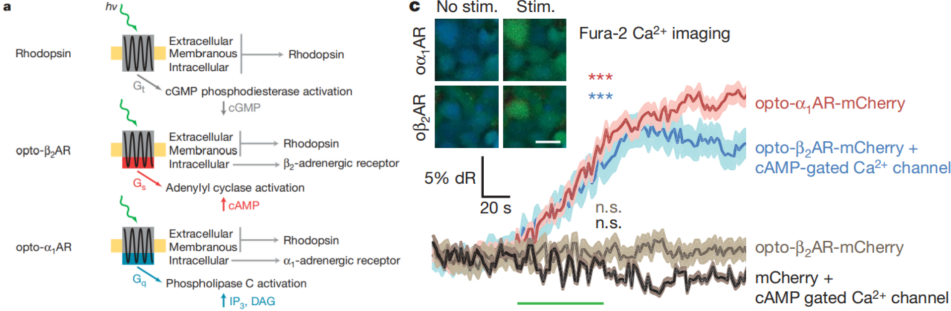

Figure 1. Optogenetic control of intracellular signaling via optoXRs.
To test optoXR function in intact neural tissue, lentiviral vectors carrying optoXR fusion genes (LV-hSyn-optoXR-XFP, Fig. 2b) were stereotactically injected into the nucleus accumbens of adult mice. Two weeks post-injection, acute coronal slices of the nucleus accumbens were prepared in artificial cerebrospinal fluid, followed by 10 minutes of light stimulation. Immediately after stimulation, slices were fixed and stained for phosphorylated CREB at Ser133 (pCREB), a biochemical integrator of cAMP- and calcium-coupled signaling cascades. Notably, even without supplementation of exogenous retinal, cells expressing optoXRs exhibited significantly elevated pCREB levels (Fig. 2b), whereas no such effect was observed in unstimulated tissue.

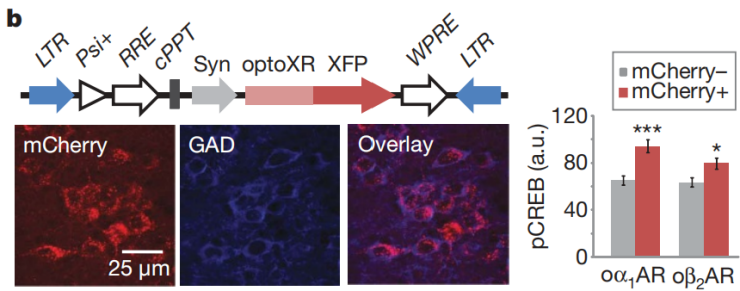

Figure 2. Signal specificity and in vivo functionality of optoXRs.
By recording neuronal firing in the nucleus accumbens with optrodes, the functional effects of optoXR activation on local electrical activity were determined (Fig. 3a). Upon light stimulation, nucleus accumbens neurons expressing opto-β₂AR exhibited reduced firing, consistent with previous pharmacological findings on Gs signaling. In contrast, light stimulation increased the firing of neurons expressing opto-α₁AR (Fig. 3b–d). Spike frequency histograms showed that the kinetics of optoXR-induced changes in firing rate matched the initiation of biochemical rather than electrical signals (Fig. 3d). Taken together, these results indicate that optoXRs can be functionally expressed in vivo, enabling differential optical activation of intracellular cascades and modulation of network-level physiological activity.

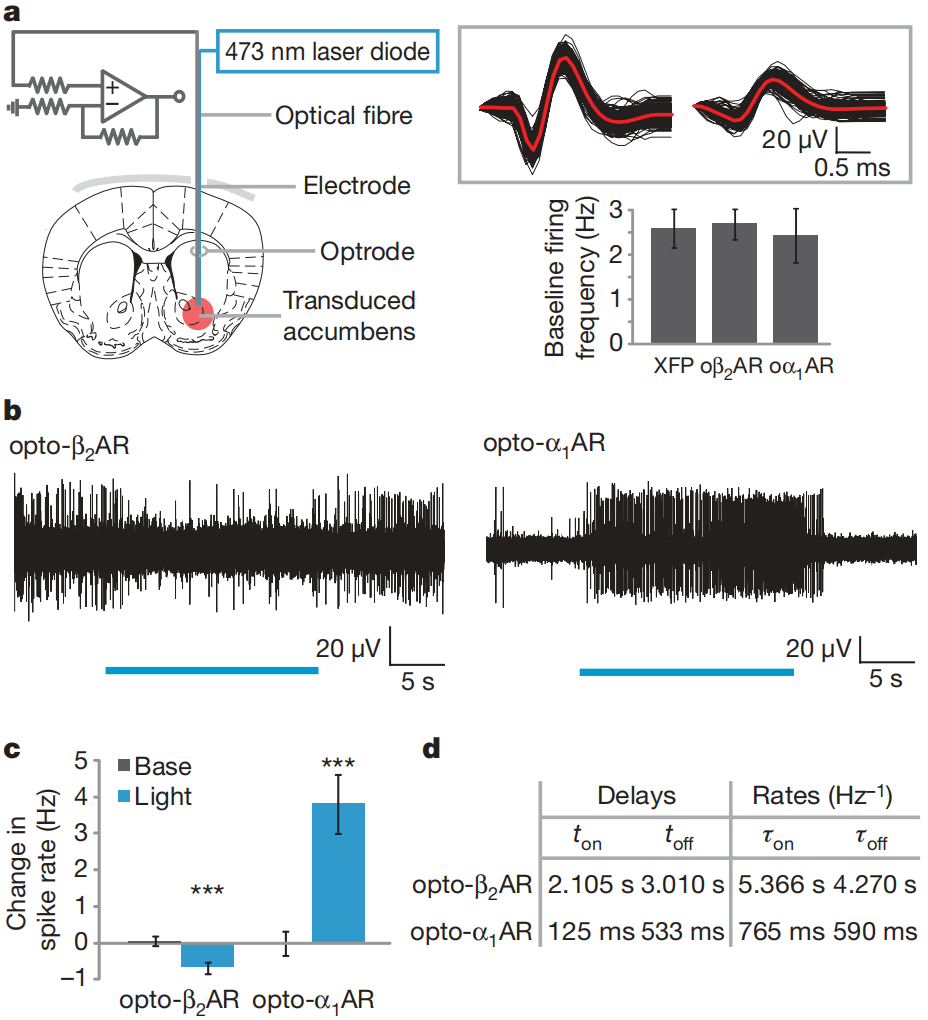

Figure 3. In vivo regulation of neuronal activity by optoXRs.
Next, an optogenetic approach was used to evaluate whether optoXR stimulation could regulate behavior in freely moving mice. Lentiviral vectors LV-hSyn-optoXR-XFP were injected into the nucleus accumbens, and optical fibers were implanted for neuronal photostimulation (10 Hz, 473 nm) (Fig. 4a). In conditioned place preference tests, mice expressing opto-α₁AR showed a significant increase in preference for the conditioned chamber following light stimulation (Fig. 4b), whereas mice expressing opto-β₂AR or ChR2 showed no obvious preference shift. The behavioral effects of opto-α₁AR stimulation in nucleus accumbens neurons were specific to reward-related behaviors and did not extend to anxiety-related or spontaneous locomotor activity. In open field tests, applying the same photostimulation protocol to the same group of mice resulted in no significant changes in total distance traveled or thigmotaxis (wall-hugging preference) (Fig. 4c).

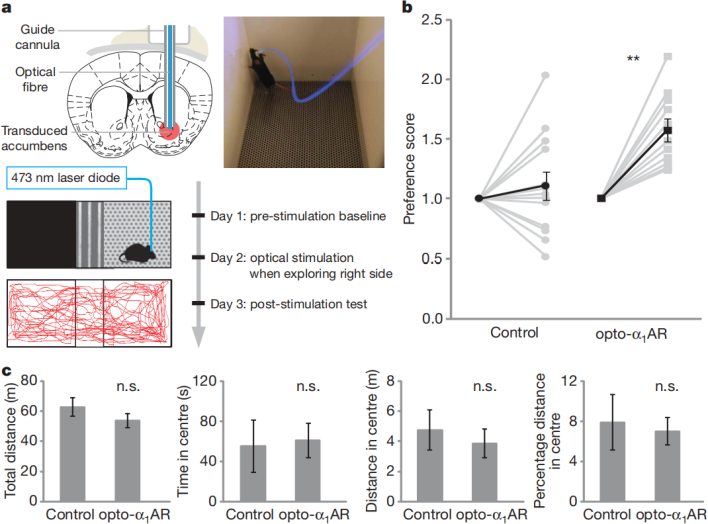

Figure 4. Optical control of reward-related behavior.
Conclusion
This study developed optoXR tools that enable genetically encoded optical regulation of intracellular biochemical signaling pathways in vivo with high spatiotemporal precision. For the first time, it demonstrated at the behavioral level (e.g., conditioned place preference) the causal role of specific biochemical signals in mammalian behavior. OptoXRs complement existing optogenetic methods by filling the gap in intracellular signaling control, offering a targeted and temporally precise approach to dissecting neural circuit function, behavioral mechanisms, and disease pathology. However, limitations remain: optoXRs may not capture the full spectrum of receptor conformations involved in ligand-biased signaling; so far, only chimeras of two adrenergic receptors have been validated, restricting their scope. Moreover, their reliance on specific wavelengths for activation may limit flexibility when simultaneously manipulating multiple pathways. Brain Case Team offers a range of OptoXRs-related AAV and LV products, along with vector construction and custom virus services. For more details, please contact bd@ebraincase.com
